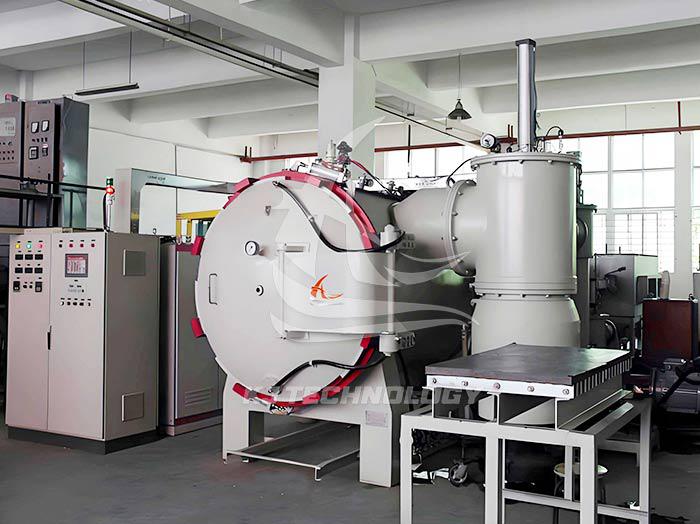

High temperature brazing vacuum furnace
Maximum temperature: 1300℃
Ultimate vacuum: 6.67*10-3Pa
Temperature uniformity: ±5℃
Temperature control accuracy: ±1℃
Pressure rising rate: ≤0.67Pa/h
Process application: Mainly used for vacuum brazing of stainless steel, copper alloy, high temperature alloy, titanium alloy, cemented carbide, metal ceramics, magnetic materials, non-ferrous metal materials and other materials, and the applicable brazing materials are nickel-based, copper, silver-based, etc.Chat OnlineLeave Message
Introduction
The heating chamber can be heated by graphite tube, and the structure of multi-layer graphite felt or graphite hard felt insulation can be used;
For high product requirements or special material brazing, molybdenum belt heating, molybdenum sheet and stainless steel plate composite insulation structure heating chamber can also be used;
The effective heating area size can be customized according to customer needs;
Computer control system.
Application
Mainly used for vacuum brazing of stainless steel, copper alloy, high temperature alloy, titanium alloy, cemented carbide, metal ceramics, magnetic materials, non-ferrous metal materials and other materials, and the applicable brazing materials are nickel-based, copper, silver-based, etc.
Treatment material
Advantages
- Reasonable arrangement of heating elements
- Multiple temperature zone control can be adopted
- Equipped with condensation filtration device
- Fully automatic control
Single chamber, internal heating, cold wall, horizontal structure；Reasonable arrangement of heating elements, large radiation area, long life.
More ProductsOnline consultationReasonably designed metal heat insulation screen, good insulation effect, saving electricity, ensuring the high vacuum required for workpiece brazing.Multi-zone temperature control can be adopted to ensure good furnace temperature uniformity in the temperature zone.
More ProductsOnline consultationEquipped with a dedicated condensation filter device to eliminate the contamination of the vacuum pump group by flux vapor；The touch screen interface is friendly and practical, which can display and monitor the operation status of the equipment, call, edit and store the process program library, and has the display, query and printing functions of process reports, real-time curves, historical curves and fault alarm reports.
More ProductsOnline consultationFully automatic control can realize "online" production management；With safety interlocking, fault diagnosis and abnormal alarm functions；The furnace door is equipped with a unique sealing structure to ensure positive and negative pressure bidirectional sealing.Diversity of cooling methods are available.
More ProductsOnline consultation
Specifications - Technical Data
| Model | Effective heating area size (width * height * depth/mm） | Maximum temperature(℃) | Ultimate vacuum(pa) | Temperature uniformity(℃) | Pressure rise rate(Pa/h) | Loading capacity(kg) |
| KJ-V1300-36W | 300*300*400 | 1300 | 6.67*10-3 | ±5 | ≤0.67 | 80 |
| KJ-V1300-96W | 400*400*600 | 1300 | 6.67*10-3 | ±5 | ≤0.67 | 150 |
| KJ-V1300-175W | 500*500*700 | 1300 | 6.67*10-3 | ±5 | ≤0.67 | 280 |
| KJ-V1300-324W | 600*600*900 | 1300 | 6.67*10-3 | ±5 | ≤0.67 | 450 |
| KJ-V1300-768W | 800*800*1200 | 1300 | 6.67*10-3 | ±5 | ≤0.67 | 750 |
The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
Customized service
KJ Technology provides you with comprehensive customized services with excellent quality to meet your different needs.
- Furnace structure customization
We support customization of door structure, temperature zone control, electrical control, etc.
- Furnace chamber customization
Different furnace volumes and sizes can be customized according to the customer's processing volume.
- Atmosphere vacuum conditions
We can provide customers with different atmospheres and meet vacuum conditions.
- Heating temperature customization
We can provide customization of heating ranges in different temperature ranges from 0℃ to 2000℃.
