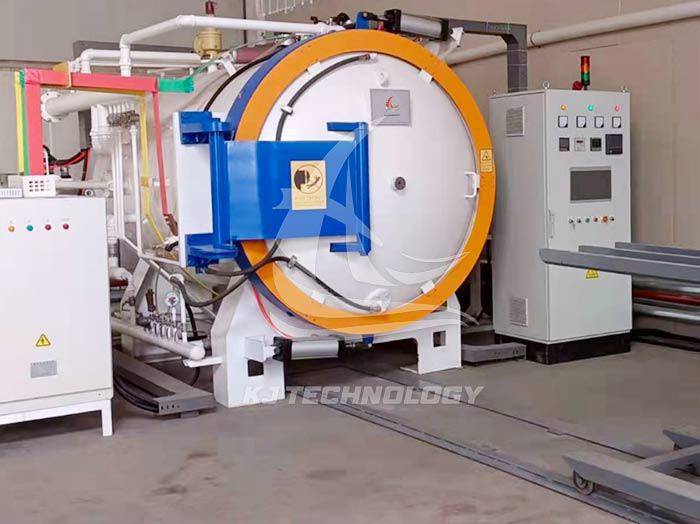

Horizontal vacuum gas quenching furnace

Maximum temperature: 1320℃

Ultimate vacuum: ≤4×10-1 Pa (empty furnace, cold state, clean) or ≤8×10-3 Pa

Temperature uniformity: ±5℃

Temperature control accuracy: ±1℃

Pressure rising rate: ≤0.67 Pa/h

Process application: Mainly used for vacuum heat treatment of high-speed steel, hot and cold die steel, stainless steel, elastic alloy, high-temperature alloy, magnetic material, titanium alloy, aerospace and industrial land-based gas turbine high-temperature parts, vacuum brazing and vacuum degassing.Chat OnlineLeave Message
Introduction

The horizontal vacuum gas quenching furnace is a single-chamber cold wall internal heating structure, electric heating, with air cooling, using a number of advanced proprietary technologies, mainly used for vacuum heat treatment of high-speed steel, hot and cold die steel, stainless steel, elastic alloy, high-temperature alloy, magnetic material, titanium alloy, aerospace and industrial land-based gas turbine high-temperature parts, vacuum brazing and vacuum degassing, operation process and process parameters (temperature, vacuum degree, air cooling pressure, process time) automatic control, with user-callable, editable and storage process program functions, with safety self-locking protection, fault self-diagnosis and alarm functions.


The furnace is suitable for both batch production of the same steel grade and single or small batch production of multiple specifications and varieties, with good economy and versatility.


The furnace heats up quickly to a very uniform temperature under high vacuum and can cool quickly to handle the workload. The equipment has high precision, fast response, good reliability, intelligent control, strong anti-interference ability, long service life, and excellent dynamic quality; it is easy to use, operate, and maintain, and has a beautiful appearance.


Application Mainly used for vacuum heat treatment of high-speed steel, hot and cold die steel, stainless steel, elastic alloy, high-temperature alloy, magnetic material, titanium alloy, aerospace and industrial land-based gas turbine high-temperature parts, vacuum brazing and vacuum degassing.
Treatment material

Advantages
  • Energy saving and environmental protection, achieving efficient production
  • Safe and reliable
  • Less heat storage, fast start and stop, energy saving
  • Ensure the processing volume and quality of high-quality workpieces.

Environmental protection, clean, safe, and highly automated.

More ProductsOnline consultation

No smoke, no open flames, no explosion hazard, and less heat dissipation from the cold furnace wall

More ProductsOnline consultation

The furnace has less heat storage, fast furnace start/stop, and energy saving; low maintenance cost of heating elements

More ProductsOnline consultation

Short process time, energy saving, high productivity; good surface quality of workpieces, small deformation during heat treatment.

More ProductsOnline consultation
Specifications - Technical Data

Model

Effective heating area size(width * height * depth/mm)

Maximum temperature(℃)

Ultimate vacuum(pa)

Temperature uniformity(℃)

Pressure rise rate(Pa/h)

KJ--V1320-12W

200*200*300

1320℃


≤4×10-1 Pa (Empty furnace, cold, clean) or ≤8×10-3 Pa

±5

≤0.67 Pa/h

KJ--V1320-36W

300*300*400

1320℃

±5

≤0.67 Pa/h

KJ--V1320-96W

400*400*600

1320℃

±5

≤0.67 Pa/h

KJ--V1320-175W

500*500*700

1320℃

±5

≤0.67 Pa/h

KJ--V1320-324W

600*600*900

1320℃

±5

≤0.67 Pa/h


The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.

Customized service

KJ Technology provides you with comprehensive customized services with excellent quality to meet your different needs.
