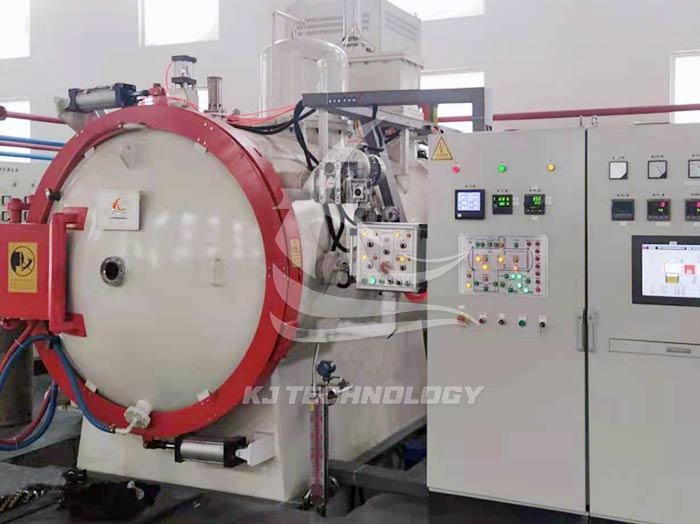

Vacuum oil quenching furnace

Maximum temperature: 1320℃

Ultimate vacuum: ≤4×10-1Pa (empty furnace, cold, dry)

Temperature uniformity: ±5℃

Temperature control accuracy: ±1℃

Pressure rising rate: ≤0.67 Pa/h

Process application: Mainly used for vacuum heat treatment, vacuum brazing and vacuum sintering of high-speed steel, hot and cold working die steel, martensitic stainless steel, elastic alloy, high-temperature alloy, magnetic material and titanium alloy. This furnace is suitable for batch production of the same steel grade, as well as single piece or small batch production of multiple specifications and varieties, with good economy and versatility. KJ Furnace has an excellent design and manufacturing team, which can manufacture according to the following standard models, and can also design and manufacture non-standard products according to customer requirements.Chat OnlineLeave Message
Introduction

The equipment can realize heat treatment processes such as vacuum oil quenching and vacuum air cooling. It is mainly used for vacuum heat treatment and vacuum post-weld heat treatment of heat-resistant steel, stainless steel and structural steel parts, and is used to eliminate the processing stress of precision parts with finished size, use residual stress stabilization treatment, and is used for final heat treatment of precision forging and precision forging parts with finished size. It can also be used for aging annealing, oil quenching, air cooling and other heat treatment processes of various materials such as high-speed steel, high-alloy tool steel, and precision machine parts. After heating, insulation and cooling under working vacuum, stainless steel, structural steel and other materials are bright and free of oxidation color, and there is no carbon increase and element depletion on the surface of the parts.


The furnace is suitable for both batch production of the same steel grade and single or small batch production of multiple specifications and varieties, and has good economy and versatility.


Application Mainly used for vacuum heat treatment, vacuum brazing and vacuum sintering of high-speed steel, hot and cold working die steel, martensitic stainless steel, elastic alloy, high-temperature alloy, magnetic material and titanium alloy. This furnace is suitable for batch production of the same steel grade, as well as single piece or small batch production of multiple specifications and varieties, with good economy and versatility. KJ Furnace has an excellent design and manufacturing team, which can manufacture according to the following standard models, and can also design and manufacture non-standard products according to customer requirements.
Treatment material

Advantages
  • High precision and fast response speed
  • Good reliability and intelligent control
  • Environmental protection and energy saving, simple and easy to operate.
  • Ensure the quality and processing volume of high-quality workpieces.

High degree of automation, short process time, energy saving, high productivity.

More ProductsOnline consultation

The heating element has low maintenance cost, strong anti-interference ability, long service life, and excellent dynamic quality.

More ProductsOnline consultation

Environmental protection, clean and safe. Convenient and fast to use, operate and maintain, beautiful appearance.

More ProductsOnline consultation

The surface quality of the workpiece is good and the heat treatment deformation is small.

More ProductsOnline consultation
Specifications - Technical Data

Model

Effective heating area size(width * height * depth/mm)

Maximum temperature(℃)

Ultimate vacuum(pa)

Temperature uniformity(℃)

Pressure rise rate(Pa/h)

Loading capacity(kg)

Air cooling pressure

Cooling gas

Heating chamber structure

Control method

KJ-V1320-96W

400*400*600




1320



≤4×10-1pa o r ≤8×10-3pa




±5




<0.6pa/h

150




<2pa




N2/Ar




Round/Octagonal




Manual/Automatic

KJ-V1320-175W

500*500*700

300

KJ-V1320-324W

600*600*900

500

KJ-V1320-490W

700*700*1000

750

KJ-V1320-768W

800*800*1200

1000

KJ-V1320-1800W

800*1500*1500

4500


The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
