Vacuum Annealing/Tempering Furnace

Maximum temperature: 2200℃

Ultimate vacuum: 10-1000pa/6.67*10-3pa/1-10pa

Temperature uniformity: ±5℃

Temperature control accuracy: ±1℃

Pressure rising rate:

Process application: It is mainly used for tempering and annealing of refractory metal compound powder metallurgy materials, carbon and graphite products, ceramic materials, high-speed steel, die steel, alloy steel, ultra-high strength steel, titanium alloy, 3D printed post-molded parts and other materials under vacuum.Chat OnlineLeave Message
Introduction

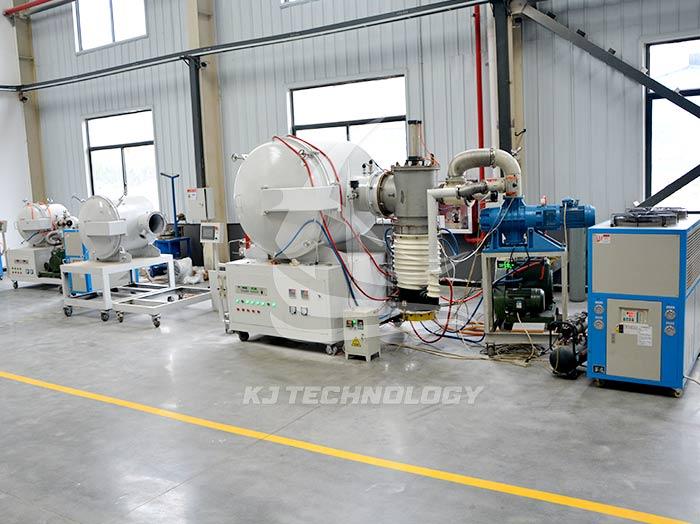

This Vacuum annealing/tempering furnace consists of a sealed furnace body, a heating chamber, a vacuum system, a water-cooling structure, an electric control system and a power supply system. The heating furnace can be made of graphite or all-metal materials according to work requirements. The electric control system adopts PLC and programmable temperature controller to realize three control modes: fully automatic, semi-automatic and manual, and is flexible to operate. The heating state can be selected as a vacuum state, or protective gas can be introduced. This vacuum furnace is mainly used for vacuum annealing, tempering, vacuum brazing and sintering of high-speed steel, hot and cold die steel, stainless steel, elastic alloys, high-temperature alloys, magnetic materials and titanium alloys.


Application:

Vacuum annealing/tempering furnace is a common heat treatment equipment, widely used in the following fields:

Material vacuum sintering: used for vacuum sintering of ceramic materials, single crystal silicon, polycrystalline silicon, ruby, silicon carbide and silicon nitride, powder metallurgy (pressing and MIM), cemented carbide, and other metals and alloy materials composed of refractory metals.


Vacuum brazing: used for vacuum brazing and annealing of rare earth permanent magnet alloys, carbides, metal ceramics, stainless steel, titanium and titanium alloys, and high-temperature alloy parts.


Metal heat treatment: used for high-temperature brazing, sintering, tempering, annealing and other processes of stainless steel, copper, titanium alloy, hard alloy, high-temperature alloy and other materials.


Application It is mainly used for tempering and annealing of refractory metal compound powder metallurgy materials, carbon and graphite products, ceramic materials, high-speed steel, die steel, alloy steel, ultra-high strength steel, titanium alloy, 3D printed post-molded parts and other materials under vacuum.
Treatment material

Advantages
  • High degree of automation
  • Meet customers' different gas requirements.
  • It can achieve high vacuum and ensure the quality of workpiece processing.
  • Horizontal and vertical types are available

The electric control system adopts PLC and programmable temperature controller to accurately control the temperature in the furnace. It is easy to operate and can switch between manual and automatic. It can realize full automatic control and fully avoid human operation errors during the work process.

More ProductsOnline consultation

Specific gases, such as high-purity nitrogen, argon, etc., can be introduced into the furnace as needed to achieve precise control of the process atmosphere. By controlling the gas composition in the atmosphere, specific chemical reactions can be achieved to meet the processing requirements of different materials

More ProductsOnline consultation

Equipped with a high-performance vacuum system, including vacuum pumps, vacuum pipes, vacuum valves and other components, it can quickly and effectively extract the air in the furnace. By selecting different vacuum pump groups, a higher vacuum level can be achieved.

More ProductsOnline consultation

Horizontal vacuum furnaces generally have single-door or double-door openings, which are suitable for processing materials of larger sizes or batches; vertical vacuum furnaces have upper or lower discharge methods, high space utilization, and are often used in some processes that have high requirements for the material processing environment.

More ProductsOnline consultation
Specifications - Technical Data
NameVacuum Annealing/Tempering Furnace
ModelKJ-VS1200KJ-VS1400KJ-VS1700KJ-VS1800KJ-VS2200
Max.temperature1200℃1400℃1700℃1800℃2200℃
Working temperature≤1100℃≤1300℃≤1600℃≤1700℃≤2100℃
Heating elementGraphite/Molybdenum StripGraphite/Molybdenum-Lanthanum AlloyGraphiteGraphiteGraphite
ThermocoupleN typetypetypeNickel wire/infraredTungsten-Rhenium Alloy
Temperature control methodPID control and self-tuning adjustment, intelligent 30-segment programmable
Temperature control protectionOver temperature and burnout protection function
Heating rateSuggest 0~10°C/min
Temperature control accuracy±1℃
Working power supply220/380V,50HZ(Customized on your needs)
Furnace shell structureCarbon steel shell, double shell
Furnace structureHorizontal/vertical, choose according to customer needs
Vacuum system

Rotary vane pump/Roots pump/Diffusion pump

 (can be matched according to needs)

Ultimate vacuum10-1000pa/6.67*10-3pa/1-10pa
Cooling system (optional)Water Cooler/Water Cooling Tower
Other optional configurationsTouch screen, molecular pump, vacuum valve automatic control, computer display
Furnace size - width * height * depth (mm)
150*150*200200*200*300300*300*400400*400*500400*400*600500*500*700
600*600*900




Other sizes can be customized according to customer needs


The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.

Customized service

KJ Technology provides you with comprehensive customized services with excellent quality to meet your different needs.
