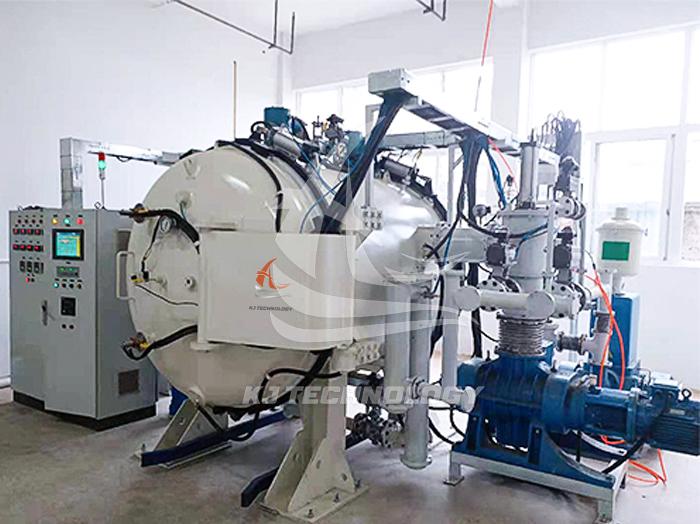

Vacuum degreasing and sintering integrated furnace
Maximum temperature: 1600℃
Ultimate vacuum: ≤5Pa
Temperature uniformity: ±5℃
Temperature control accuracy: ±1℃
Pressure rising rate: ≤0.67Pa/h
Process application: Widely used in the processing and manufacturing of medical and equipment parts (orthodontic series products. Freight elevator sampling forceps, etc.), mobile phone parts (metal decorative parts of the shell, metal navigation keys, card tray keys, buckles, shafts, mobile phone vibrators, etc.), computer parts and hardware tools.Chat OnlineLeave Message
Introduction
The vacuum degreasing sintering furnace is mainly used for the degreasing sintering process of cemented carbide, metal ceramics, stainless steel (nickel-based), iron-based, titanium alloy, alloy steel, high-speed steel and other metals.
Application
Widely used in the processing and manufacturing of medical and equipment parts (orthodontic series products. Freight elevator sampling forceps, etc.), mobile phone parts (metal decorative parts of the shell, metal navigation keys, card tray keys, buckles, shafts, mobile phone vibrators, etc.), computer parts and hardware tools.
Treatment material
Advantages
- Special heating zones and components
- Multiple vacuum heat treatment processes
- Pneumatic locking of furnace cover
- Highly safe protection and prevention functions
Special hot zone structure and heating element design to ensure good temperature uniformity; Professional degreasing device, well sealed and removable, can effectively prevent internal component contamination;
More ProductsOnline consultationEquipped with vacuum sintering, micro positive pressure sintering, partial pressure sintering, micro negative pressure degreasing and micro positive pressure degreasing functions.
More ProductsOnline consultationThe furnace cover is pneumatically locked to ensure positive and negative pressure bidirectional sealing，optional rapid cooling system.
More ProductsOnline consultationEquipped with temperature, pressure, water pressure, vacuum and other interlocking functions, with highly safe protection and prevention functions.
More ProductsOnline consultation
Specifications - Technical Data
| Model | Effective heating area size (width * height * depth/mm） | Maximum temperature(℃) | Ultimate vacuum(pa) | Temperature uniformity(℃) | Pressure rise rate(Pa/h) | Loading capacity(kg) |
| KJ-V1600-12W | 200*200*300 | 1600 | ≤5Pa | ±5 | ≤0.67 | 30 |
| KJ-V1600-36W | 300*300*400 | 1600 | ≤5Pa | ±5 | ≤0.67 | 80 |
| KJ-V1600-96W | 400*400*600 | 1600 | ≤5Pa | ±5 | ≤0.67 | 180 |
| KJ-V1600-175W | 500*500*700 | 1600 | ≤5Pa | ±5 | ≤0.67 | 300 |
| KJ-V1600-324W | 600*600*900 | 1600 | ≤5Pa | ±5 | ≤0.67 | 500 |
| KJ-V1600-768W | 800*800*1200 | 1600 | ≤5Pa | ±5 | ≤0.67 | 800 |
The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
Customized service
KJ Technology provides you with comprehensive customized services with excellent quality to meet your different needs.
- Furnace structure customization
We support customization of door structure, temperature zone control, electrical control, etc.
- Furnace chamber customization
Different furnace volumes and sizes can be customized according to the customer's processing volume.
- Atmosphere vacuum conditions
We can provide customers with different atmospheres and meet vacuum conditions.
- Heating temperature customization
We can provide customization of heating ranges in different temperature ranges from 0℃ to 2000℃.
