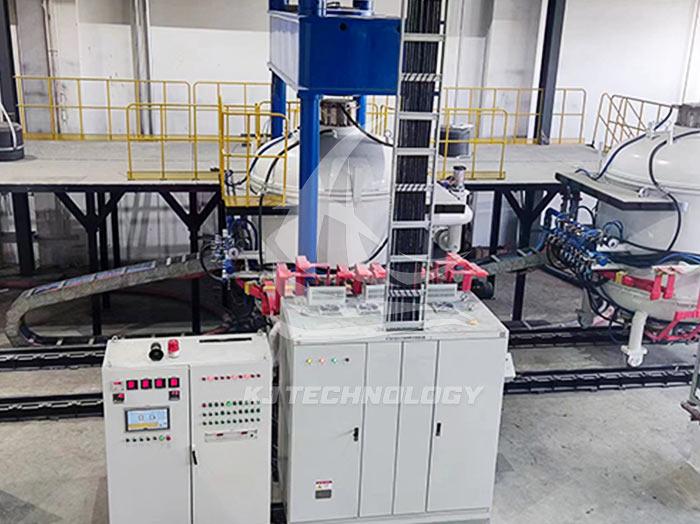

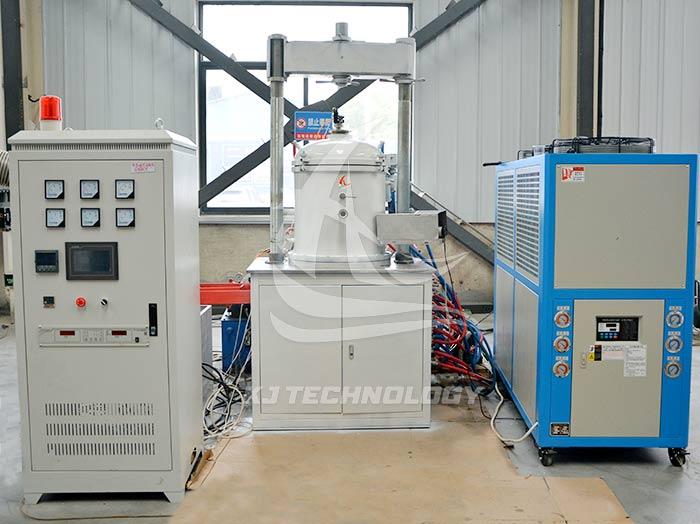

Vacuum hot press furnace
Maximum temperature: 1500℃
Ultimate vacuum: 6.67*10-3Pa
Temperature uniformity: ±5℃
Temperature control accuracy: ±1℃
Pressure rising rate: ≤0.67Pa/h
Process application: It is widely used in the field of powder metallurgy to prepare high-performance powder metallurgy parts, such as gears, cams, and cutters; in the field of functional ceramics, it can prepare functional ceramic materials such as transparent ceramics, piezoelectric ceramics, and thermistor ceramics; in the field of metal materials, it is used for hot pressing, diffusion bonding, powder forging and other processes of metal materials; in the field of semiconductor materials,it is used for the sintering, annealing, epitaxial growth and other processes of semiconductor materials to improve the performance and reliability of semiconductor devices.Chat OnlineLeave Message
Introduction
The vacuum hot pressing furnace combines vacuum, hot pressing and high temperature sintering functions, and is mainly used in the powder metallurgy industry and the forming and sintering process of the ceramic industry.
Application
It is widely used in the field of powder metallurgy to prepare high-performance powder metallurgy parts, such as gears, cams, and cutters; in the field of functional ceramics, it can prepare functional ceramic materials such as transparent ceramics, piezoelectric ceramics, and thermistor ceramics; in the field of metal materials, it is used for hot pressing, diffusion bonding, powder forging and other processes of metal materials; in the field of semiconductor materials,it is used for the sintering, annealing, epitaxial growth and other processes of semiconductor materials to improve the performance and reliability of semiconductor devices.
Treatment material
Advantages
- Single and double pressure heads are optional
- The pressure part adopts advanced accessories
- Highly secure protection and prevention functions
- Equipped with intelligent control system
The furnace body is horizontal or vertical, and the pressure can be designed as a single pressure head or an upper and lower double pressure head structure.
More ProductsOnline consultationThe seal of the pressure head drive shaft adopts our company's special products, which are leak-proof and have a long service life;The pressure sensor and displacement sensor all adopt international advanced standards, which are stable and accurate in long-term use
More ProductsOnline consultationThe furnace is equipped with interlocking functions such as temperature, pressure, water pressure, and vacuum, and has highly safe protection and prevention functions.
More ProductsOnline consultationIt can be equipped with remote control operation, remote applause diagnosis, and remote program update functions.
More ProductsOnline consultation
Specifications - Technical Data
| Model | Effective heating area size (width * height * depth/mm） | Maximum temperature(℃) | Ultimate vacuum(pa) | Temperature uniformity(℃) | Pressure rise rate(Pa/h) | Loading capacity(kg) |
| KJ-V1500-16/16L | Φ160*160 | 1500 | 6.67*10-3 | ±5 | ≤0.67 | 20 |
| KJ-V1500-20/20L | Φ200*200 | 1500 | 6.67*10-3 | ±5 | ≤0.67 | 40 |
| KJ-V1500-25/30L | Φ250*300 | 1500 | 6.67*10-3 | ±5 | ≤0.67 | 50 |
| KJ-V1500-35/40L | Φ350*400 | 1500 | 6.67*10-3 | ±5 | ≤0.67 | 100 |
| KJ-V1500-45/50L | Φ450*500 | 1500 | 6.67*10-3 | ±5 | ≤0.67 | 200 |
The above parameters can be adjusted according to process requirements and are not used as acceptance basis. The specific technical plan and agreement shall prevail.
Customized service
KJ Technology provides you with comprehensive customized services with excellent quality to meet your different needs.
- Furnace structure customization
We support customization of door structure, temperature zone control, electrical control, etc.
- Furnace chamber customization
Different furnace volumes and sizes can be customized according to the customer's processing volume.
- Atmosphere vacuum conditions
We can provide customers with different atmospheres and meet vacuum conditions.
- Heating temperature customization
We can provide customization of heating ranges in different temperature ranges from 0℃ to 2000℃.
